ASIX Industrial Ethernet products include two families: AX58x00 EtherCAT slave controllers/SoC and AXM57104 TSN NIC. This solution is suitable for smart factory, industrial automation, industrial IoT (IIoT), etc. applications.

The AX58400 EtherCAT Slave Controller w/ Dual-Core MCU is equipped with 480MHz ARM® Cortex®-M7 core, 240MHz ARM® Cortex®-M4 core and EtherCAT Slave Controller with two integrated Fast Ethernet PHYs. AX58400 supports AES/TDES/HASH/HMAC hardware cryptographic accelerators, ROP/PCROP/Anti-tamper security techniques, and additional communication interfaces such as 10/100Mbps Ethernet MAC with MII/RMII, HS USB OTG, Camera I/F, TFT-LCD Controller, JPEG Codec, SPI/UART/I2C/I2S/SAI/CAN/SDMMC/ ADC/DAC/HDMI-CEC/PWM/DFSDM, etc.

EtherCAT

The AX58200 is a 2/3-port EtherCAT Slave Controller SoC equipped with ARM® Cortex®-M4F core with DSP extension runs up to 192 MHz and EtherCAT Slave Controller (ESC) with two integrated Fast Ethernet PHYs. AX58200 also supports additional communication interfaces such as 10/100Mbps Ethernet MAC with RMII and hardware cryptography accelerator, HS USB OTG, SPI/UART/I2C/I2S/CAN/PWM, etc.

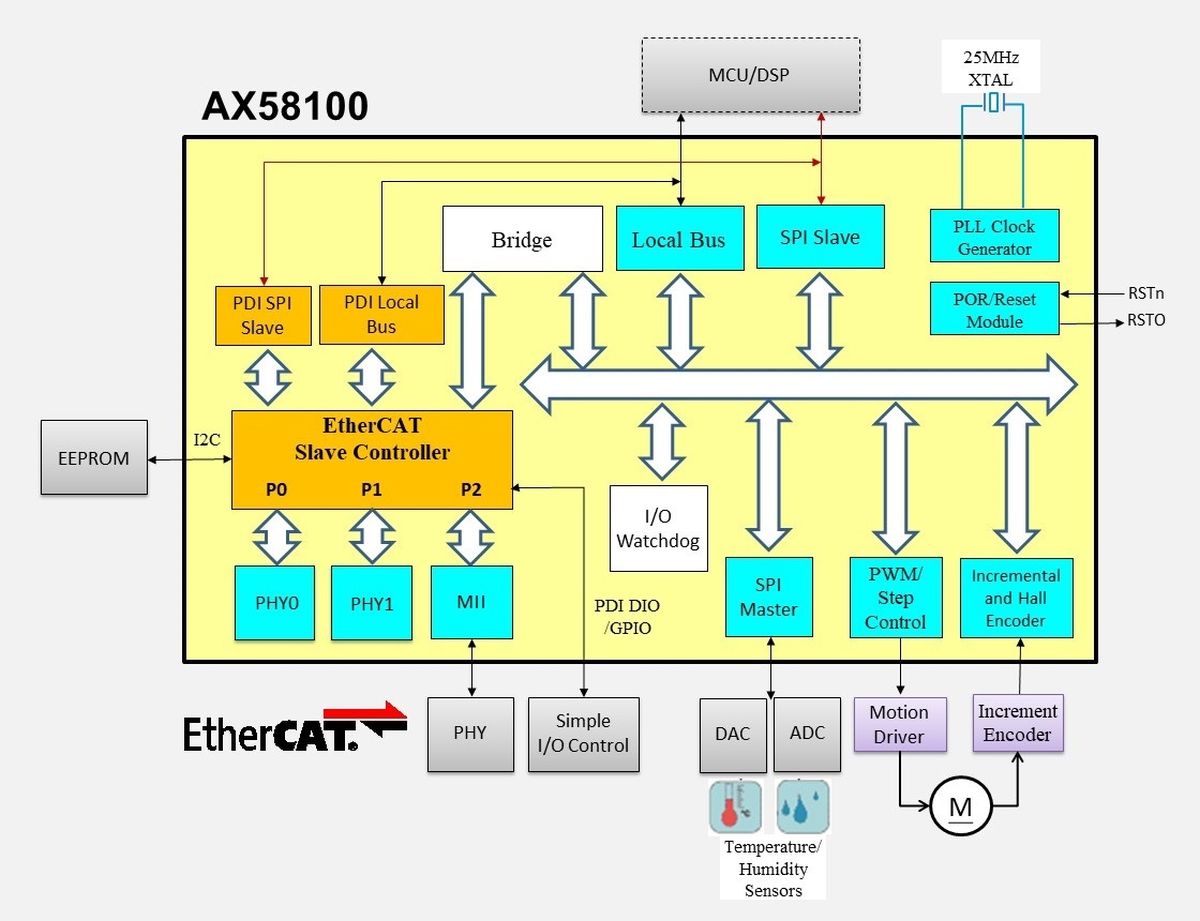

The AX58100 is a 2/3-port EtherCAT Slave Controller (ESC) with two embedded Fast Ethernet PHYs. The AX58100 also provides SPI slave and Local bus Process Data Interfaces (PDI) to provide an easy way for system designers to implement the standard EtherCAT communication functionalities on those traditional non-EtherCAT MCU and DSP industrial platforms.

EtherCAT Total Solution

NEXTW provides easy-to-use EtherCAT master automation barebone SoC solutions, which support EtherCAT protocol stack, high accuracy DC master synchronization (DCM) capability and real-time sub-system for industrial automation applications.

NEXTW also provides EtherCAT slave motor/motion control modules, digital I/O control modules, hardware reference circuits, multi-axis motion control software library, SDK, etc. for rapid EtherCAT slave applications development. Contact NEXTW for details...

TSN

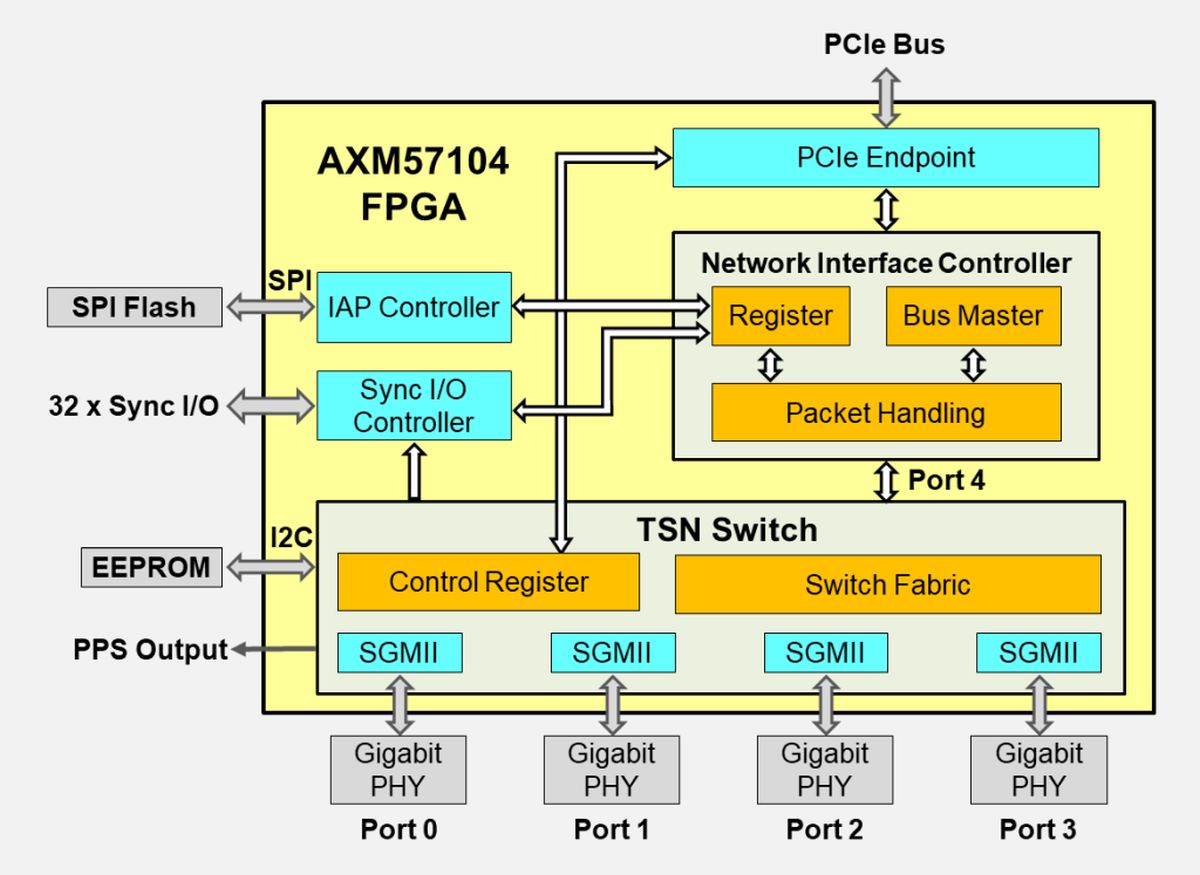

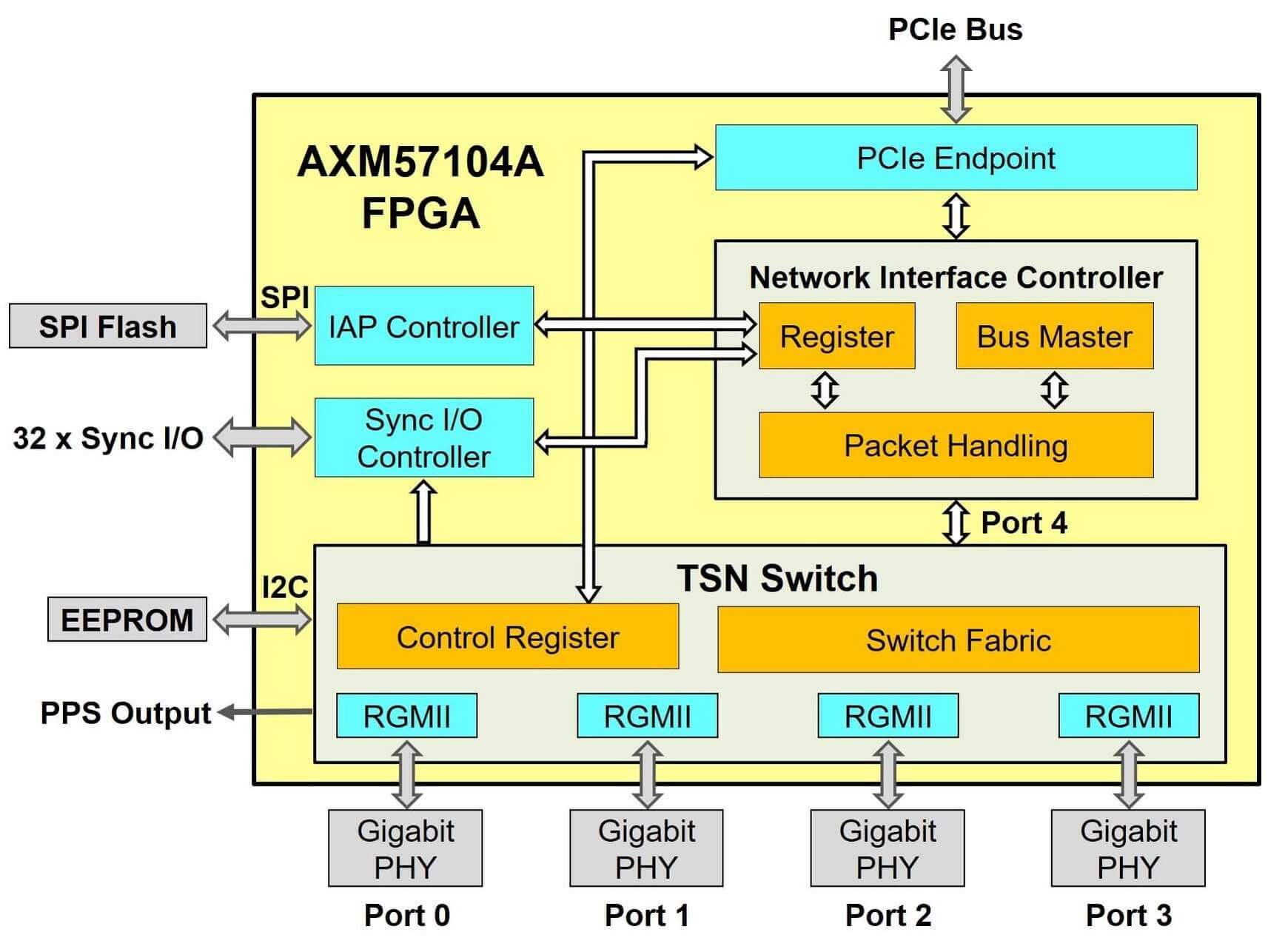

The AXM57104 is a 4-port TSN Gigabit Ethernet PCIe NIC card supports enhanced TSN functions included the timing and synchronization compliant to IEEE 802.1 AS-Rev/AS and IEEE 1588V2, the Credit-Based Shaper compliant to IEEE 802.1Qav, the Frame Preemption compliant to IEEE 802.1Qbu, the Time-Aware Shaper compliant to IEEE 802.1Qbv, and the Frame Replication and Elimination for Reliability compliant to IEEE 802.1CB. AXM57104 also supports FPGA hard-core field upgradable via In Application Programming (IAP) for TSN standards evolution.

TSN Development Platform

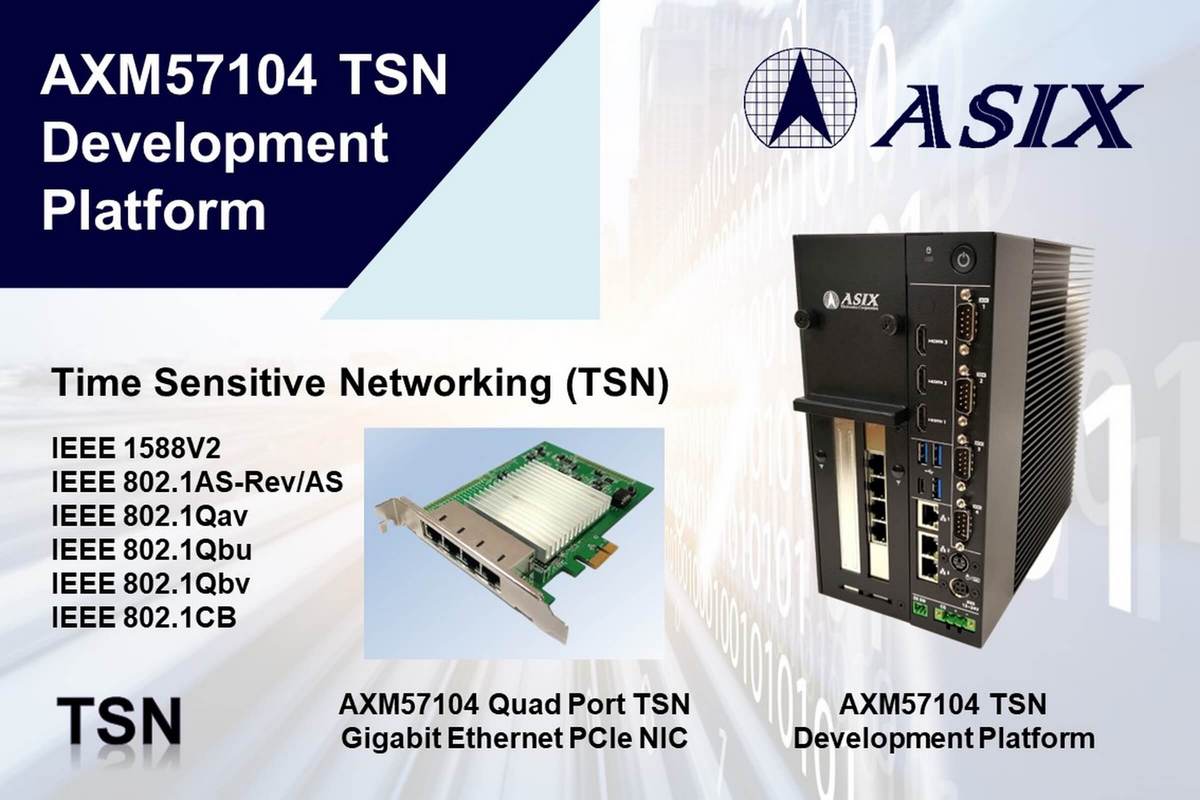

The AXM57104 TSN Development Platform is a fanless industrial computer equipped with RT-Linux real-time operating system and integrated AXM57104 Quad Port TSN Gigabit Ethernet PCIe NIC Card. This platform offers various TSN utility sample codes to speed up the development of AXM57104 TSN applications and provides an easy way to enter the world of the next generation industrial Ethernet technology.

Selection Guide

EtherCAT

Add Favorites

Learn More

Partnumber

Processor

On-chip Flash (Bytes)

On-chip Data RAM (Bytes)

Ethernet MAC

USB OTG

ESC Fast Ethernet

ESC RAM (Kbytes)

ESC FMMU

ESC Sync Managers

ESC Distributed Clock

Graphic

Camera I/F

ADC

DAC

Σ-Δ Modulator

Temperature Range (°C)

Package/ Size

Dual-Core ARM Cortex-M7/M4 480MHz/240MHz
2M Dual bank
1M
10/100 Mbps (w/ MII/RMII)
2x HS
2 x Internal PHY , 1 x MII
9
8
8
64-bit
TFT-LCD
1
3 x 16-bit
2 x 12-bit
1
-40 ~ +85
EHS-TFBGA-225 13x13 mm 0.8mm pitch
ARM Cortex-M4F 192MHz
512K Dual bank
160K
10/100 Mbps (w/ RMII)
1x HS
2 x Internal PHY , 1 x MII
9
8
8
64-bit
---
---
1 x 12-bit
2 x 12-bit
---
-40 ~ +85
HSFBGA-144 10x10 mm 0.8mm pitch
---
---
---
---
---
2 x Internal PHY, 1 x MII
9
8
8
64-bit
---
---
---
---
---
-40 ~ +105
LQFP-80, 12x12mm

TSN

Add Favorites

Learn More

Partnumber

Host Interface

TSN Gigabit Ports

802.1AS-Rev/AS

802.1Qav

802.1Qbu

802.1Qbv

802.1CB

IAP

I2C Master

Sync. I/O

PPS Output

PCIe Card Profile

Temperature Range (°C)

PCIe 2.1 Gen 1
4
V
V
V
V
V
V
1
32
1
PCIe x1 slot, Standard profile bracket
-40 ~ +80
