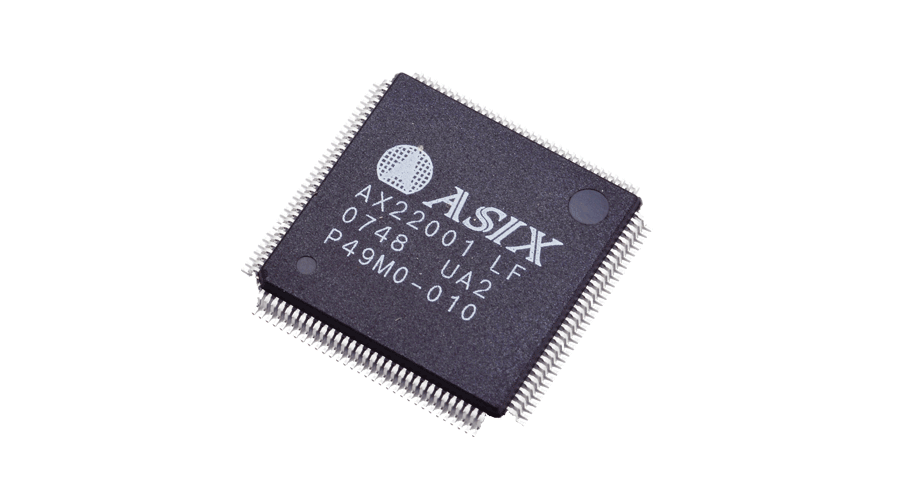

AX22001

ASIX provides plenty of AX220xx technical documents and sample codes for customers' reference. User can purchase an AX220xx reference design board and refer to the provided reference design source code as baseline to implement your own AX220xx applications. Please contact ASIX Sales staffs at sales@asix.com.tw for more details.
If user would like to implement AX220xx family on your application directly without having to buy the AX220xx reference design board, you should contact ASIX Sales staffs to get AX220xx related technical documents and sample codes, subject to ASIX

ASIX provides the AX22001 802.11b/g WiFi Module Board (with Airoha AL2230S RF chip) which is a RF calibrated and tested module. To shorten customer's hardware design cycle on RF circuit layout and RF testing during prototyping phase, customers can design your own base board with desired function and interface circuits and assemble it with the AX22001 802.11b/g WiFi Module Board through the pin header.
ASIX will provide more AX220xx WiFi module board solutions such as smaller form factor or with stamp holes (saving the pin header cost), etc. later. For most up-to-date information, please contact ASIX Sales staffs at sales@asix.com.tw.

You can visit the AX220xx Development Board web page for details of AX220xx WiFi module boards.

ASIX provides some AX220xx reference design applications such as AX22001 WiFi Speaker Reference Design, AX220xx RS-232 to WiFi Reference Design, and AX220xx SPI to WiFi Reference Design for customer evaluation purpose. These reference design boards allow customers to quickly verify the AX220xx reference design related software and hardware components. ASIX will provide more reference designs for AX220xx family later. For most up-to-date information, please contact ASIX Sales staffs at sales@asix.com.tw.

Yes, you can use ASIX's WiFi module solutions such as AXM22001-2A-C 802.11b/g WiFi module board on your AX220xx applications directly if you don't have experiences to implement the WiFi module by yourselves. Please contact ASIX Sales staffs at sales@asix.com.tw for more details.

No, the AX220xx family currently supports only commercial temperature range: 0 to 70°C. If you need the industrial temperature version or other special requirements, please contact ASIX Sales staffs at sales@asix.com.tw for further support.

Yes, user can eliminate the I²C Hardware Configuration EEPROM on your AX220xx applications and use the Hardware Configuration Sector in AX220xx Flash Memory SA2 sector to store the AX220xx hardware configuration setting instead. Please refer to Section 3 of AX220xx datasheet for details.

The AX220xx family integrates on-chip 64KB SRAM for MCPU data memory and on-chip 32KB SRAM for WCPU data memory.

The AX220xx integrates on-chip 1 MB shared Flash memory for MCPU and WCPU program code.

No, the AX220xx doesn't support external Flash memory interface. The AX220xx on-chip 1M Flash memory should be sufficient for most AX220xx target applications. Please contact ASIX Sales staffs at sales@asix.com.tw for further support if you have special requirements.

Yes, AX220xx supports the Real Time Clock (RTC) Controller that provides the real time clock information for some applications. The RTC Controller is a clock/calendar with seconds, minutes, hours, day, date, month and year information, and also features programmable time-of-day/date alarms. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year.

Yes, AX220xx supports 3 WiFi power saving modes with auto-wakeup for Beacon frame reception.

When program code in on-chip Flash memory needs to be protected from unauthorized download for copyright protection purpose, the AX220xx on-chip Flash memory offers a hardware mechanism to enable/disable on-chip Flash memory read protection. Please refer to AX220xx datasheet for details.

The recommended EEPROM part on AX220xx reference design board is Microchip 24LC04B I2C EEPROM. You can select other 24LC04B compatible EEPROM too.

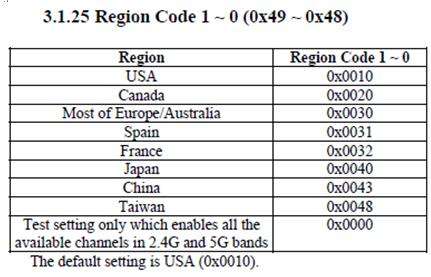

User can define the available WiFi channels through the Region Code setting in I2C Hardware Configuration EEPROM or the Hardware Configuration Sector in AX220xx Flash Memory SA2 sector. The AX220xx WCPU firmware would read this setting to determine the available channels group supported for the region/country code.

No, ASIX provides free AX220xx related sample codes for customers to implement AX220xx applications.

All the software modules for AX220xx family are developed in C language on Keil IDE development environment. User can purchase the Keil IDE Development Environment from Keil's web site.
In general, user should purchase the PK51 development tool for C-language compiler, debugger and simulator. User can also download the Keil C51 evaluation software for free from Keil's web site, but the evaluation software can only compile the sample codes with less than 2K bytes binary code. Please refer to Keil's web site for more details about the limitation of evaluation software.

No, user should purchase the Keil IDE development tools from Keil's web site. In general, user should purchase the PK51 development tool for C-language compiler, debugger and simulator.

AX220xx currently provides two debug tool solutions, one is the UART console debug; the other is the Digital Core Design (DCD)'s DoCD HAD2 debugger. All the AX220xx software modules support some basic UART console debug function by default.
If user needs more powerful debug tool like source level debug, AX220xx reference design board supports the DCD's DoCD Hardware Debugger- the HAD2 module. Through the HAD2 module, the software running on AX220xx reference design board can be real-time debugged.

User can purchase the HAD2 module from DCD and download the debugger software from DCD's web site. Please refer to DCD's provided DoCD HAD2 debugger documents for procedures to set up the DoCD HAD2 debugger environment.

It depends on the user's requirement. If user is comfortable with debugging AX220xx software via the UART console debugging method, your probably don't need to purchase the DoCD HAD2 debugger.

No, users should purchase the DoCD HAD2 Debugger from Digital Core Design's web site (http://www.dcd.pl/).

ASIX provides two AX220xx Boot Loader binary codes for two application scenarios. The first is for the case where user needs to use the DoCD HAD debugger function, typically during software development stage; the second is for the case where user needs to prevent unauthorized program code download, typically required for user's final application software. Other than the code protection mode, the two AX220xx Boot Loader binary codes share exactly the same functions and features supported.
In general, users don't need to port the AX220xx Boot Loader source code by yourselves.

ASIX provides a WCPU driver firmware binary code that supports the AL2230S/AL7230 RF transceiver chips from Airoha. However, there are some WiFi customization setting such as WiFi LED, supported region code or channel map, etc. that can be defined by user in the I²C Configuration EEPROM or Flash memory sector 2. The WCPU driver firmware supports to operate in infrastructure or IBSS mode with various configuration/management APIs available to MCPU software.
In general, users don't need to port the AX220xx WCPU driver firmware source code by yourselves.

Yes, user should port the AX220xx MCPU firmware source code by referring to the provided reference design source code as baseline to implement your own AX220xx applications.

AX220xx WCPU supports operation in Infrastructure or Ad-Hoc (IBSS) network topology.
