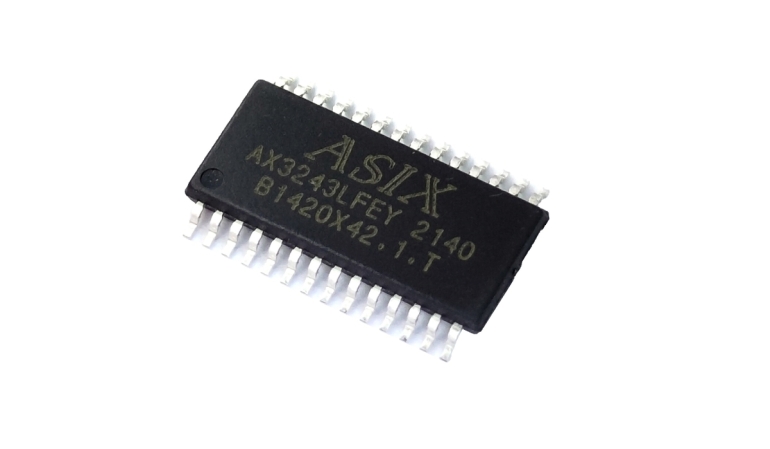

AX3243F

Low Power 3V to 5.5V 3D/5R 1000Kbps RS-232 Transceiver

Add Favorites

Overview

The AX3243F family is a low‑power 3V 1000Kbps RS‑232 UART transceiver operating from a single 3V to 5.5V supply. It supports three drivers and five receivers with data rates up to 1000 Kbps, and is fully compliant with EIA‑232/TIA‑232 and ITU‑T V.28/V.24 standards for RS‑232 UART serial communication. The device integrates three RS‑232 line drivers, five RS‑232 line receivers, and proprietary switched‑capacitor regulated voltage converters. With enhanced electrostatic discharge (ESD) protection on all RS‑232 I/O pins, the AX3243F exceeds ±15 kV IEC61000‑4‑2 air‑gap discharge and ±8 kV IEC61000‑4‑2 contact discharge, ensuring robust and reliable performance.


The AX3243F supports the proprietary AUTOGREEN power saving function which automatically powers down the on-chip regulated voltage converters and driver circuits when an RS-232 cable is disconnected from the host interface or when the connected peripheral device is turned off.

Features

● Meets or Exceeds EIA/TIA-232F and CCITT V.28/V.24 Specifications for VCC at +3.3V ±10% and +5V ±10% Operations

● Interoperable with EIA/TIA-232 and adheres to EIA/ TIA-562 down to a +2.7V power source
● Low Quiescent Current – 1.5mA typical, 3mA max.
● Low Shutdown Current (where applicable) - 1μA typical, 10μA max.
● Guaranteed Data Rate 1000Kbps
● Latch-up Free
● Proprietary Switch-Capacitor Regulated Voltage Converters
● Proprietary AUTOGREEN Power Saving
● ESD Protection for RS-232 I/O Pins
±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge
● 28-pin SSOP/TSSOP and 32-pin WQFN RoHS Compliant Package
● Operating Temperature Range: -40 to +85°C
● Pin and Function Compatible Replacements for ZT3243F, MAX3245E, ICL3245, ISL4245E, and SP3243U
● Standard Data Rate at 250Kbps Available on AX3243E

Target Applications

Battery-Powered And Hand-Held Applications

Industrial and Embedded PCs
Notebook/POS Terminals
Data Cables/Cradles for Cell Phones and PDAs
Industrial Cellular Routers/Gateways/Modems
Industrial Automation/DAQ Applications
Surveillance and Security Systems/Medical Equipment
RFID/Printer/Mouse/Barcode Scanner
Serial Communication/Peripheral Interface Applications

Diagram

test

Download

Technical Documentation

Product Brief, Product Introduction and Datasheet

AX3243F Product Brief

Release Date
2022-10-19

File Size
260.2 KB

AX3243F Datasheet

Version
1.01

Release Date
2022-10-21

File Size
1.1 MB
