Overview
USB KVM Switch

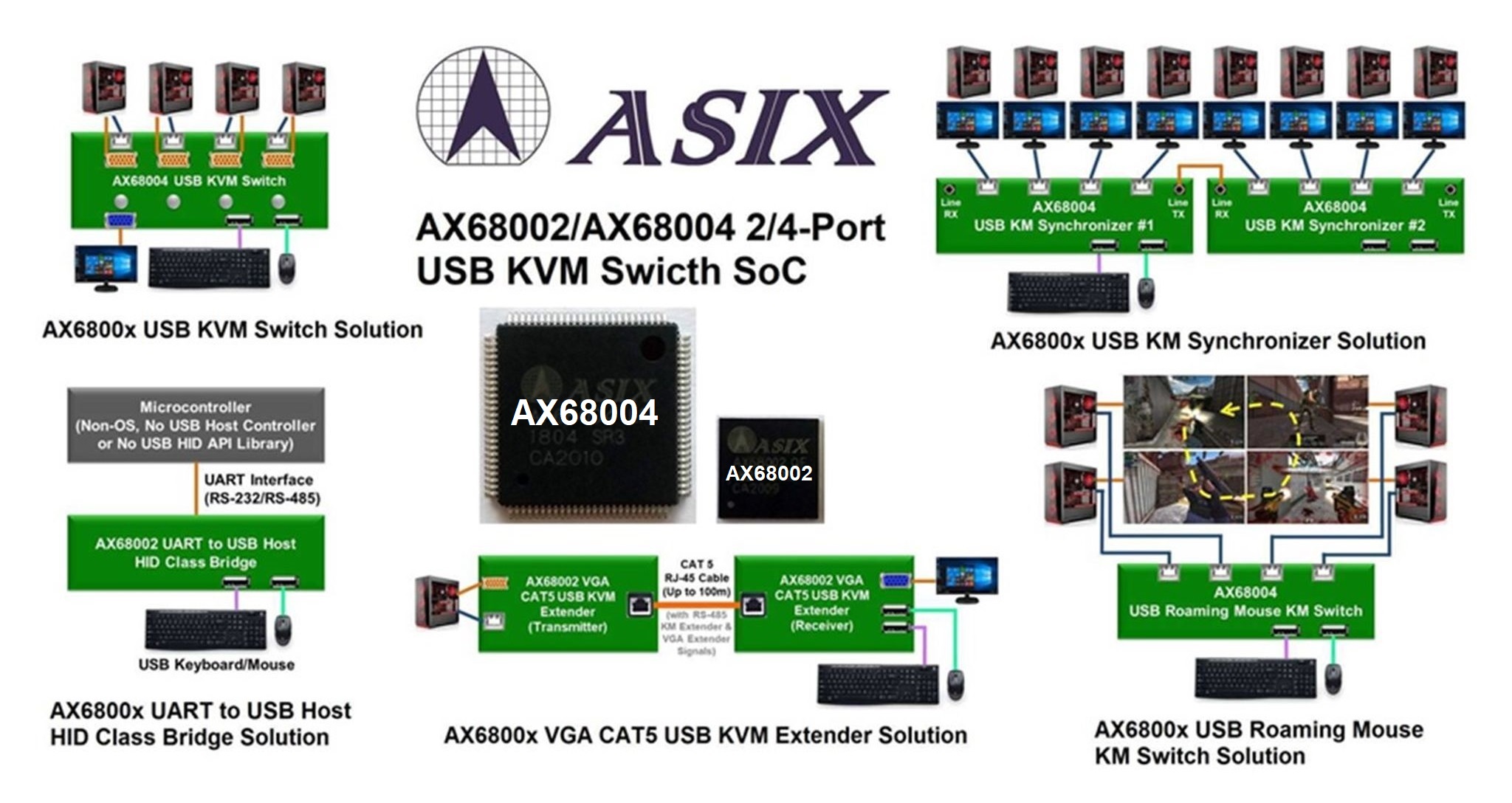

AX68002/AX68004 USB KVM Switch SoC solutions are suitable for USB KVM Switch, USB KVM Extender, USB Keyboard/Mouse Synchronizer, USB Roaming Mouse KM Switch and USB-C Gaming Phone Dock applications.
Overview
White Papers
USB KVM Switch SoC

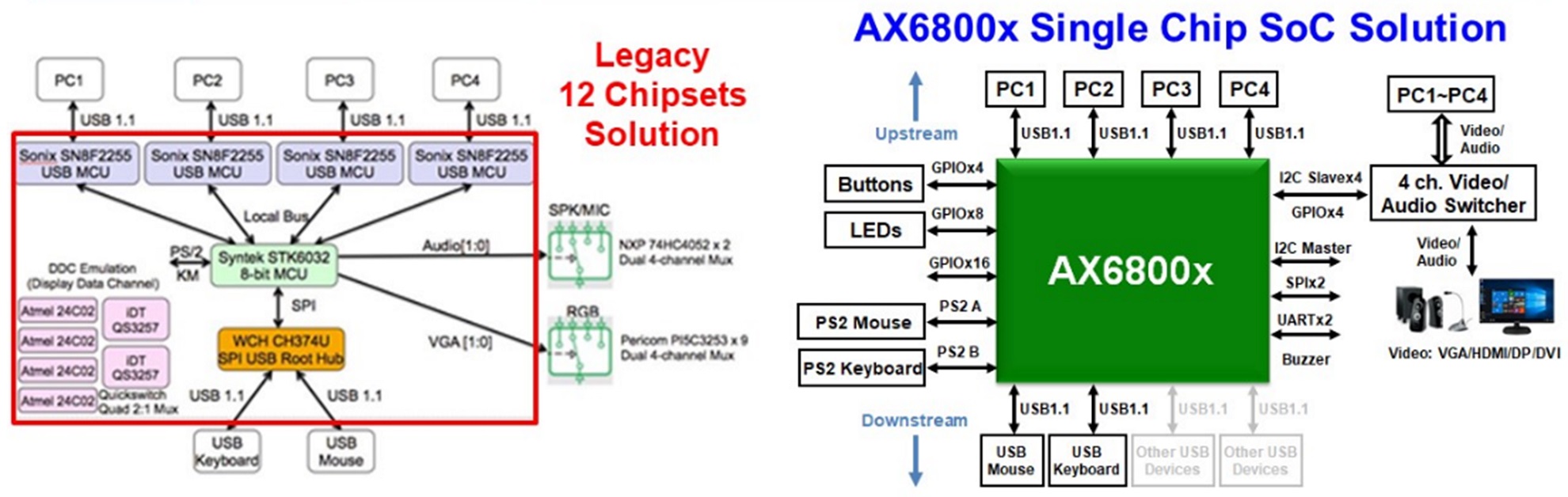

The AX6800x family, Single Chip Micro-controller with USB Host and Device controller, is a System-on-Chip (SoC) solution. Compared with the legacy 4-port USB KVM switch using 12 chips (including one MCU, four USB device MCUs, one USB root hub, four EEPROMs and two bus switches).

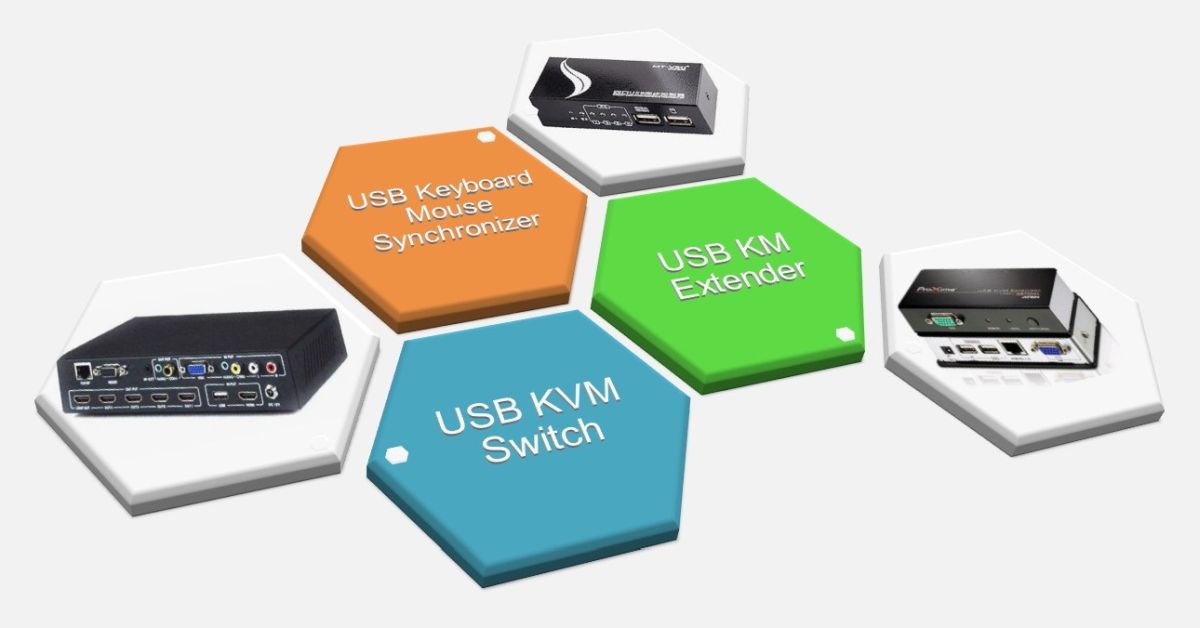

Typical Applications
> Desktop/Cable/Enterprise/Cat 5 2/4/8/16-Port USB KVM Switch
> USB Cat 5/Fiber Optic/HDBaseT 1.0 KVM Extender
> Android USB-C Gaming Phone Dock Station
> USB Roaming Mouse KM Switch
> USB Keyboard Mouse Synchronizer
> UART to USB Host HID Class Bridge
The AX6800x USB KVM Switch SoC solution is suitable for USB KVM Switch, USB KVM Extender, USB Roaming Mouse Siwtch, USB Keyboard Mouse Synchronizer, USB-C Gaming Phone Dock, etc. applications.
White Papers
-
ASIX Single Chip USB KVM Switch Solutions
Compared to the traditional 4-Port USB KVM switch with up to 12 chipsets solution, ASIX provides a simple design and cost-effective AX6800x USB KVM Switch SoC single chip solution.
