数据表

UART收发器

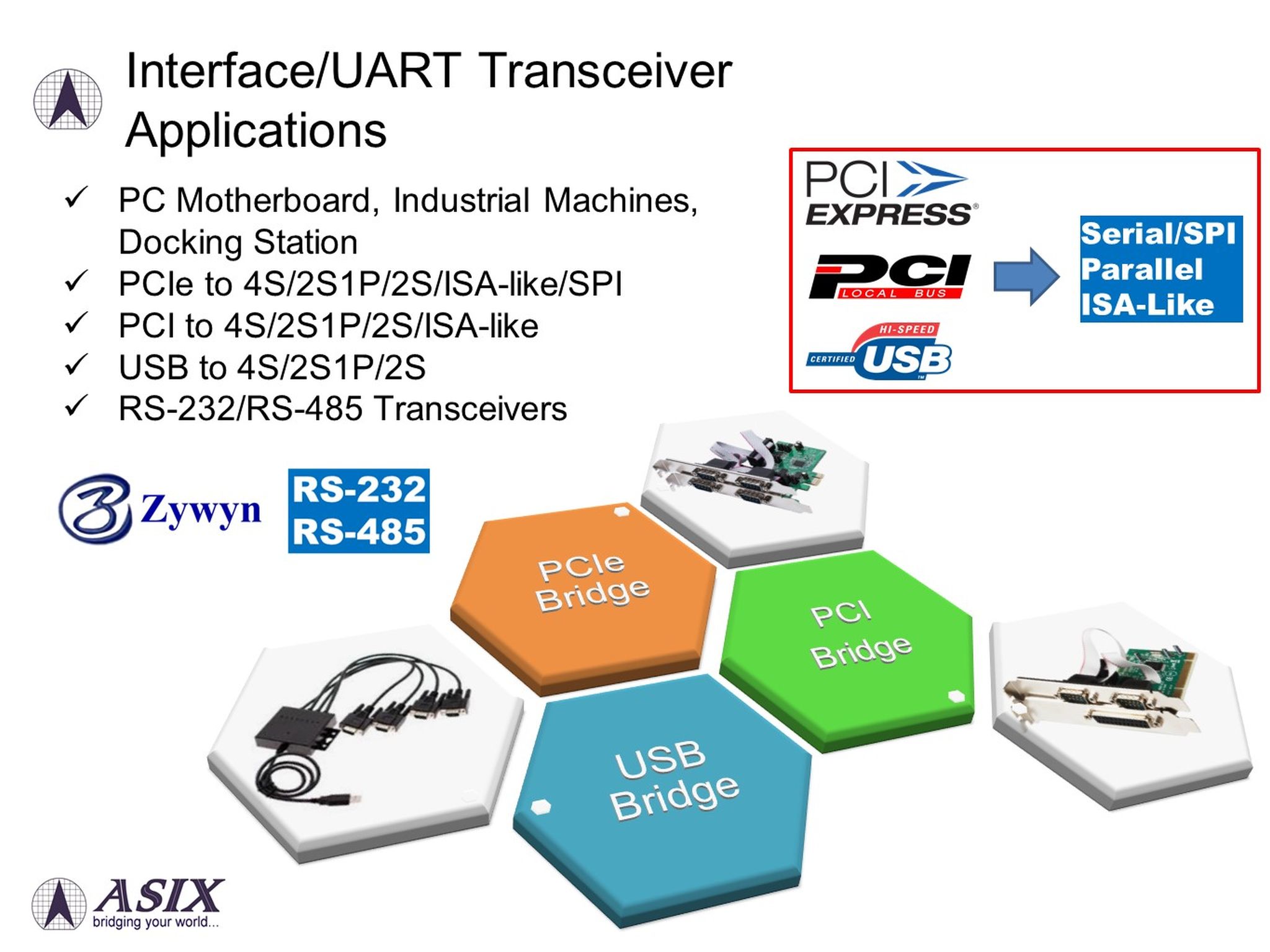

亚信提供四个系列UART收发器解决方案: 5V RS-232收发器,3V RS-232收发器,5V RS-485收发器与3V RS-485收发器,可适用于各种工业电脑与I/O串并接口连接器等产品相关应用。

EL冷光驱动器

亚信EL冷光驱动器解决方案可适用于各种智能手机,PDA,手持行动设备等相关产品应用,可独立或同时驱动两个EL冷光灯。

选型指南

5V RS-232收发器

Add Favorites

了解详情

输入电压

Icc空载电流典型值 (mA)

Tx No.

Rx No.

Data Rate (Kbps)

Typ. Output Voltage Swing(V)

ESD on RS232 I/O

Receiver Enable

Shut Down Enable

Wake Up

引脚数

封装

工作温度范围(°C)

+5V
4.0
2
2
250
± 9V
± 15KV
---
---
---
16
PDIP, nSOIC, TSSOP
-40 ~ +85
+5V
3.0
2
2
250
± 6V
± 15KV
---
---
---
16
PDIP, nSOIC, wSOIC, TSSOP
-40 ~ +85
+5V
3.0
4
5
250
± 6V
± 15KV
V
V
---
28
wSOIC, SSOP
-40 ~ +85
+5V
5.0
4
5
250
± 9V
± 15KV
V
V
V
28
wSOIC, SSOP
-40 ~ +85
+5V
3.0
4
5
250
± 6V
± 15KV
V
V
V
28
wSOIC, SSOP
-40 ~ +85
+5V
3.0
4
5
1000
± 6V
± 15KV
V
V
V
28
wSOIC, SSOP
-40 ~ +85

3V RS-232收发器

Add Favorites

了解详情

输入电压

Icc空载电流典型值 (mA)

Tx No.

Rx No.

Data Rate (Kbps)

ESD on RS232 I/O

Receiver Enable

Shut Down Enable

Auto Green Function

引脚数

封装

工作温度范围(°C)

+3.0~5.5V
0.5
1
1
250
± 15KV
V
V
---
16
wSOIC, SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
1
1
250
± 15KV
V
V
V
16
SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
2
2
250
± 15KV
V
V
---
18, 20
wSOIC, SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
2
2
1000
± 15KV
V
V
---
18, 20
wSOIC, SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
2
2
250
± 15KV
V
V
V
20
SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
2
2
250
± 15KV
---
---
---
16
nSOIC, wSOIC, SSOP, TSSOP, QFN
-40 ~ +85
+3.0~5.5V
0.5
2
2
1000
± 15KV
---
---
---
16
nSOIC, wSOIC, SSOP, TSSOP, QFN
-40 ~ +85
+3.0~5.5V
0.5
3
5
250
± 15KV
V
V
---
28
wSOIC, SSOP, TSSOP
-40 ~ +85
+3.0~5.5V
0.5
3
4
250
± 15KV
---
V
V
28, 32
wSOIC, SSOP, TSSOP, VQFN
-40 ~ +85
+3.0~5.5V
0.5
3
5
1000
± 15KV
---
V
V
28, 32
wSOIC, SSOP, TSSOP, VQFN
-40 ~ +85
+3.0~5.5V
0.5
2
2
250
± 15KV
---
V
---
18, 20
wSOIC, SSOP
-40 ~ +85

5V RS-485收发器

Add Favorites

了解详情

输入电压

Icc空载电流典型值 (mA)

Tx/Rx No.

Duplex

Data Rate (Mbps)

ESD on RS485 I/O

Tx/Rx No. on Bus

Slew Rate Limit

Low- Power Shutdown

Tx/Rx Enable

引脚数

封装

工作温度范围(°C)

+5V
0.4
1/1
Half
0.25
± 15KV
32
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Half
10
± 15KV
32
---
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
0.25
± 15KV
32
V
---
---
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
0.25
± 15KV
32
V
V
V
14
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
10
± 15KV
32
---
---
---
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
10
± 15KV
32
---
V
V
14
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Half
0.25
± 15KV
128
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Half
0.25
± 15KV
256
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Half
10
± 15KV
256
---
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
0.25
± 15KV
256
V
---
---
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
0.25
± 15KV
256
V
V
V
14
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
10
± 15KV
256
---
---
---
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
10
± 15KV
256
---
V
V
14
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Half
2.5
± 15KV
256
---
V
V
8
PDIP, nSOIC
-40 ~ +85
+5V
0.4
1/1
Full
20
± 15KV
256
---
---
---
8
PDIP, nSOIC
-40 ~ +85

3V RS-485收发器

Add Favorites

了解详情

输入电压

Icc空载 电流典型值 (mA)

Tx/Rx No.

Duplex

Data Rate (Mbps)

ESD on RS485 I/O

Tx/Rx No. on Bus

Slew Rate Limit

Rx Input Filtering

Low- Power Shutdown

Tx/Rx Enable

引脚数

封装

工作温度范围(°C)

+3V
0.4
1/1
Half
0.25
± 15KV
32
V
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Half
16
± 15KV
32
---
---
V
V
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
0.25
± 15KV
32
V
V
---
---
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
16
± 15KV
32
---
---
---
---
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
16
± 15KV
32
---
---
V
V
14
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
0.25
± 15KV
256
V
V
V
V
14
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Half
0.25
± 15KV
256
V
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
0.5
± 15KV
256
V
V
V
14
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Half
0.5
± 15KV
256
V
V
V
V
8
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Full
16
± 15KV
256
---
V
V
V
14
PDIP, nSOIC
-40 ~ +85
+3V
0.4
1/1
Half
16
± 15KV
256
---
V
V
V
8
PDIP, nSOIC
-40 ~ +85

EL冷光驱动器

Add Favorites

了解详情

输入电压

Standby Current (uA)

Lamp Size (sq.in)

Typical Vpp (V)

Lamp Freq (Hz)

封裝

其它特性

+2.2V to +5.0V
0.05
1.0 to 10
195
400
8-MSOP
Single R controls osc freq. High output ideal for large display panel.
+2.2V to +3.6V
0.01
0.5 to 2.0
160
256
8-MSOP, 8-nSOIC, Die in wafflepack & wafer form
Ext oscillator source required. Very low power, Die sales available.
+2.2V to +5.0V
0.05
1.0 to 10
140
352
8-MSOP, 8-nSOIC
One ext cap controls osc freq. Low power. Die sales available.
+2.2V to +5.0V
0.01
1.0 to 10
150
300
8-MSOP, 8-nSOIC
Ext cap to select osc freq. Very low operating current.
+2.2V to +5.0V
0.10
1.0 to 10
180
350
10-MSOP
Single IC driver 2 EL lamps independently with one inductor coil. Single ext R controls osc freq.
