ZSP4422A

Electroluminescent Lamp Driver

Add Favorites

Overview

The ZSP4422A is a high voltage output DC-AC converter that can operate from a +2.2V to +5.0V power supply. The ZSP4422A is designed with our proprietary high voltage BiCMOS technology and is capable of supplying up to 160Vpp signals, making it ideal for driving small electroluminescent lamps. The device features 50nA (typical) standby current, for use in low power portable products. One external inductor is required to generate the high voltage, and an external capacitor is used to select the oscillator frequency. The ZSP4422A is offered in an 8-pin narrow SOIC package or an 8-pin MSOP package. For delivery in die form, please consult the factory.

Features

● +2.2V to +5.0V battery operation
● 50nA typical standby current
● High voltage output typical 160Vpp
● Internal oscillator

Target Applications

PDAs
Cellular phones
Remote controls
Handheld computers

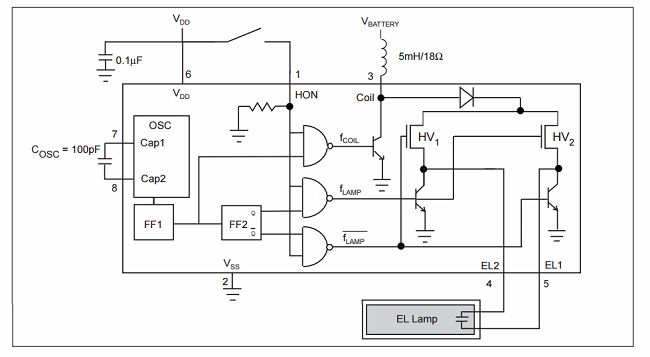

Diagram

Download

Technical Documentation

Product Brief, Product Introduction and Datasheet

ZSP4422A Product Brief

Release Date
2015-04-30

File Size
273.1 KB

ZSP4422A Datasheet

Version
2.00

Release Date
2015-06-03

File Size
1.1 MB
