Non-PCI 8/16-bit 2-Port 10/100M Fast Ethernet Controller [NOT FOR NEW DESIGN!!]

Add Favorites

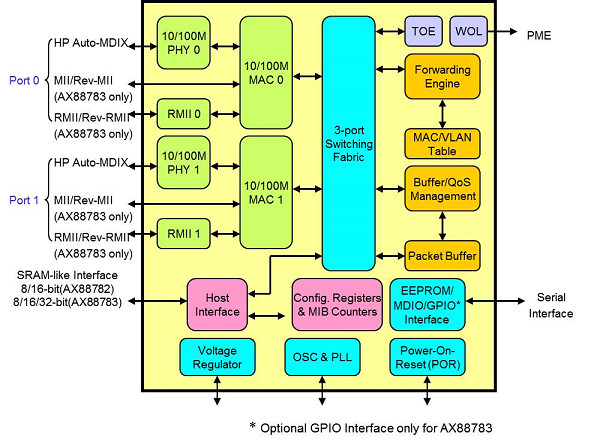

The AX88782 is a single-chip 2-port 10/100M Ethernet Switch controllers featuring a 3-port switching fabric with QoS priority management, three 10/100M MACs, two 10/100M PHYs, and 8/16-bit Non-PCI host interface.

The AX88782 combine the benefits of high integration and small form factor making them ideal single-chip solutions for designing high performance, QoS-aware and cost effective 2-port Ethernet functions for embedded system applications such as VoIP phone/ATA adapters, surveillance IP cameras, next-generation IP-STB/IPTV, industrial controller/network sensors, port redundancy/port monitoring and Single Board Computers (SBC)


● High Performance Non-PCI Interface
-- Configurable 8/16-bit SRAM-like host interface (US Patent Approval), easily interfaces with most common embedded MCUs
-- Supports PPPoE/IPv4 IP/TCP/UDP/ICMP/ IGMP checksum offload to relieve CPU loading
-- Supports burst-mode access, minimizing CPU overhead
● Fast Ethernet MAC/PHY
-- IEEE 802.3 10Base-T/100Base-TX compatible
-- Supports full-duplex operation with IEEE 802.3x flow control and half duplex with backpressure
-- 10/100M PHY supports twisted pair crossover detection and auto-correction (HP Auto-MDIX)
-- Supports Wake-on-LAN by Microsoft Wakeup Frame, Magic Packet and link status change detection
● Switching Fabric
-- Performs non-blocking wire-speed forwarding and filtering
-- Embeds 32KB SRAM for packet buffering
-- Supports broadcast storm filtering
-- Supports per queue and per port ingress and egress programmable rate limit control
-- Integrates two-way Address-Lookup engine and table for 1K MAC addresses
-- Supports Routing Table/IGMP/VLAN Table access through CPU read/write operation
-- Supports 802.1D Spanning Tree Protocol and 802.1w Rapid Spanning Tree Protocol
● QoS
-- Supports Quality-of-Service for port-based, 802.1p VLAN and IPv4 TOS/IPv6 COS packets with four priority queues
-- Supports RFC2475 DiffServ-based
-- Supports up to 3 VLAN groups for port-based VLAN and 16 VLAN entries for 802.1Q tag-based VLAN function
-- Supports Double tagging 802.1Q-in-802.1Q function for WAN access
● Security
-- Supports ingress port security mode, incoming packets with unknown source MAC address could be dropped
-- Supports eight Security MAC Registrations
-- Supports 802.1X port-based Authorization
● Multicast
-- Supports GMRP/GVRP/GARP packet snooping
-- Supports IPv4 IGMP and IPv6 ICMP/MLD (Multicast Listener Discovery) Snooping
-- Supports up to 1K Multicast Group (shared with L2 MAC table)
-- Supports eight IGMP Multicast IP address snooping
● Monitoring
-- Supports RMON group 1,2,3,9 counter (RFC1213)
-- Supports Ethernet-like MIB counter (RFC 1643)
-- Supports Bridge MIB counter (RFC 1493)
-- Egress/Ingress Port Mirroring
-- Sniffer functions
○ Source/Destination Port
○ Ethernet Packet Type
○ IPv4/IPv6 Protocol
○ IPv4/IPv6 TCP/UDP Port Number
● Supports EEPROM Interfaces
● Single 3.3V power supply with options for 1.8V, 2.5V and 3.3V I/O voltage support
● Integrates an on-chip voltage regulator requiring only a single power supply of 3.3V
● Integrates an on-chip oscillator and PLL requiring only a 25MHz crystal to operate
● Integrates on-chip power-on reset circuit
● 80-pin E-PAD LQFP RoHS compliant package
● Operating temperature range: 0°C to +70°C


Development Board


AX88782 SMDK2440 Demo Board

This is an AX88782 SMDK2440 demo board for users to verify AX88782 on SMDK2440 platform with Samsung S3C2440A 32-bit ARM920T CPU. Users can easily connect this demo board onto other embedded systems through the external memory interface.


Hardware Design Considerations

  • How to open the gerber files of AX88782 SMDK2440 demo board?

    You can open the gerber files of AX88782 SMDK2440 demo board by running ORACLE's AutoVue Evaluation Revision tool (30 days evaluation date). Please visit ORACLE's web site for more details.

  • How to open the PowerPCB PCB layout file of AX88782 SMDK2440 demo board?

    You can open the PowerPCB PCB layout file of AX88782 SMDK2440 demo board by running Mentor Graphics PADS Layout Product Evaluation Software (No time limitation but with limited function). Please visit Mentor Graphics' web site for more details.


Technical Documentation

Product Brief, Product Introduction and Datasheet

AX88782 Product Brief

Release Date

File Size
178.7 KB

AX88782 Product Introduction


Release Date

File Size
1.0 MB

AX88782 Datasheet


Release Date

File Size
3.6 MB

Reference Manuals and User Guides

ASIX Multi-Port Ethernet Controller Software Programming Guide

ASIX Multi-Port Ethernet Controller EEPROM/Manufacture User Guide


AX88782 Hardware Throughput Test Report

AX88782 Reliability Report

AX88782 RoHS Report

AX88782 IEEE 802.3 Compliant Test Reports

Hardware Design Documentation

Reference Schematics

AX88782 SMDK2440 Demo Board Reference Schematic


Release Date

File Size
328.5 KB

Bill of Materials, Application Notes and Layout Guides

AX88782 SMDK2440 Demo Board BOM File


Release Date

File Size
63.6 KB

AX88782 Multi-Port Ethernet Controller Application Design Note


Release Date

File Size
761.3 KB

PCB Layout, Gerber and IBIS Model

AX88782 SMDK2440 Demo Board Gerber Files

Release Date

File Size
517.3 KB

AX88782 SMDK2440 Demo Board PCB Layout File (PowerPCB)

Release Date

File Size
328.6 KB

AX88782 IBIS Model

Release Date

File Size
1.2 MB

Software & Tools


Linux Kernel 3.x/2.6.x/2.4.x 1N2P Driver Source

For 1 NIC/2 Ports application


Release Date

File Size
42.1 KB

uboot 1N2P Driver Source

For 1 NIC/2 Ports application


Release Date

File Size
12.1 KB
