ZSP4423

针对低功耗应用之EL驱动器

Add Favorites

简介

The ZSP4423 is a high voltage output DC-AC converter that can operate from a +2.2V to +5.0V power supply. The ZSP4423 is designed with our proprietary high voltage BiCMOS technology and is capable of supplying up to 200Vpp signals, making it ideal for driving small electroluminescent lamps. The device features 10nA (typical) standby current, for use in low power portable products. An inductor is used to generate the high voltage, and an external capacitor is used to select the oscillator frequency. The ZSP4423 is offered in an 8-pin narrow SOIC package or an 8-pin MSOP package. For delivery in die form, please consult the factory.

规格:

● +2.2V to +5.0V battery operation
● 10nA typical standby current
● High voltage output typical 160Vpp
● Internal oscillator

目标应用:

PDAs
MP3 players
Cellular phones
Remote controls
Handheld computers

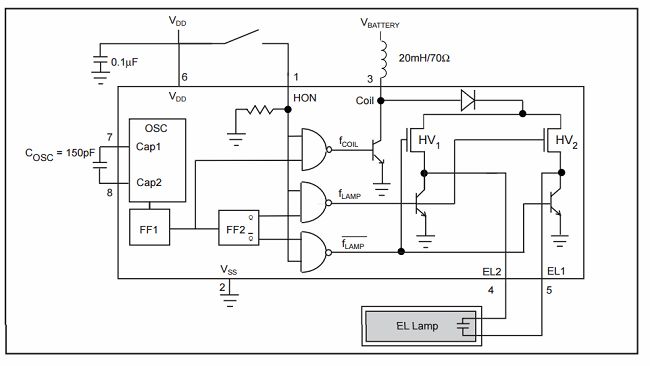

图表

档案下载

技术文档

产品简述 , 产品介绍和数据手册

ZSP4423 Product Brief

发布日期
2015-04-30

文件尺寸
220.6 KB

ZSP4423 Datasheet

版本
2.00

发布日期
2015-06-03

文件尺寸
974.8 KB
